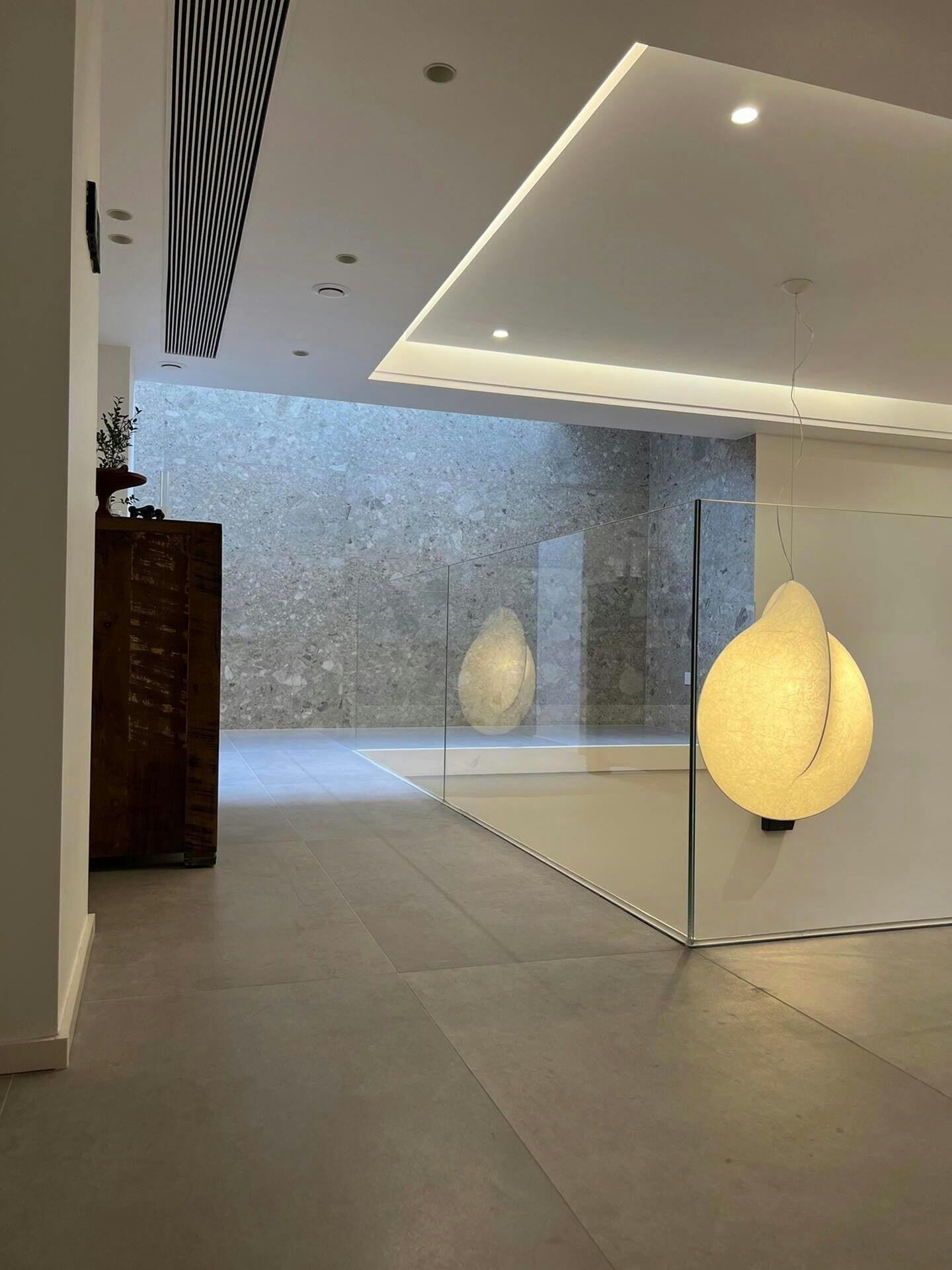

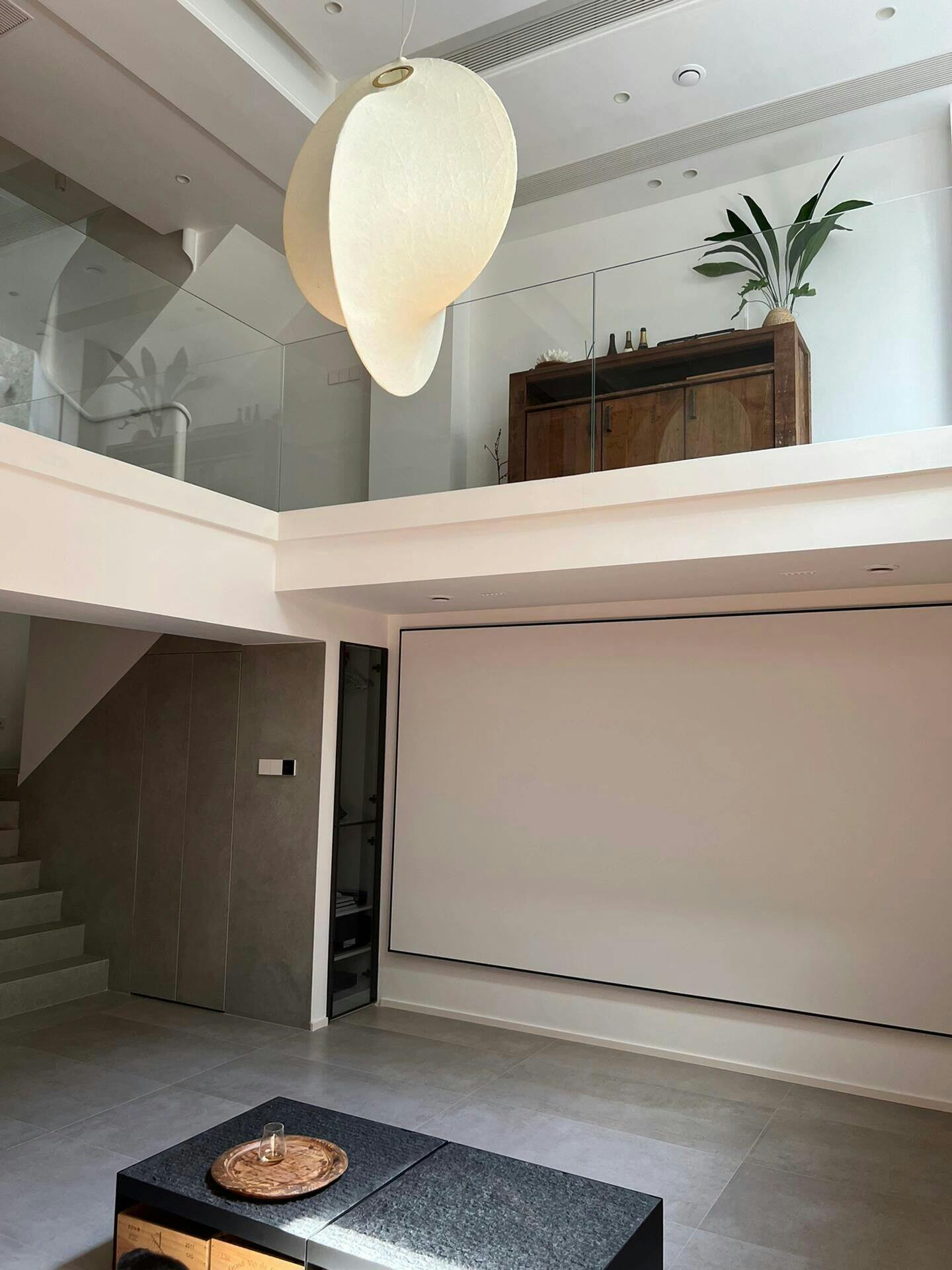

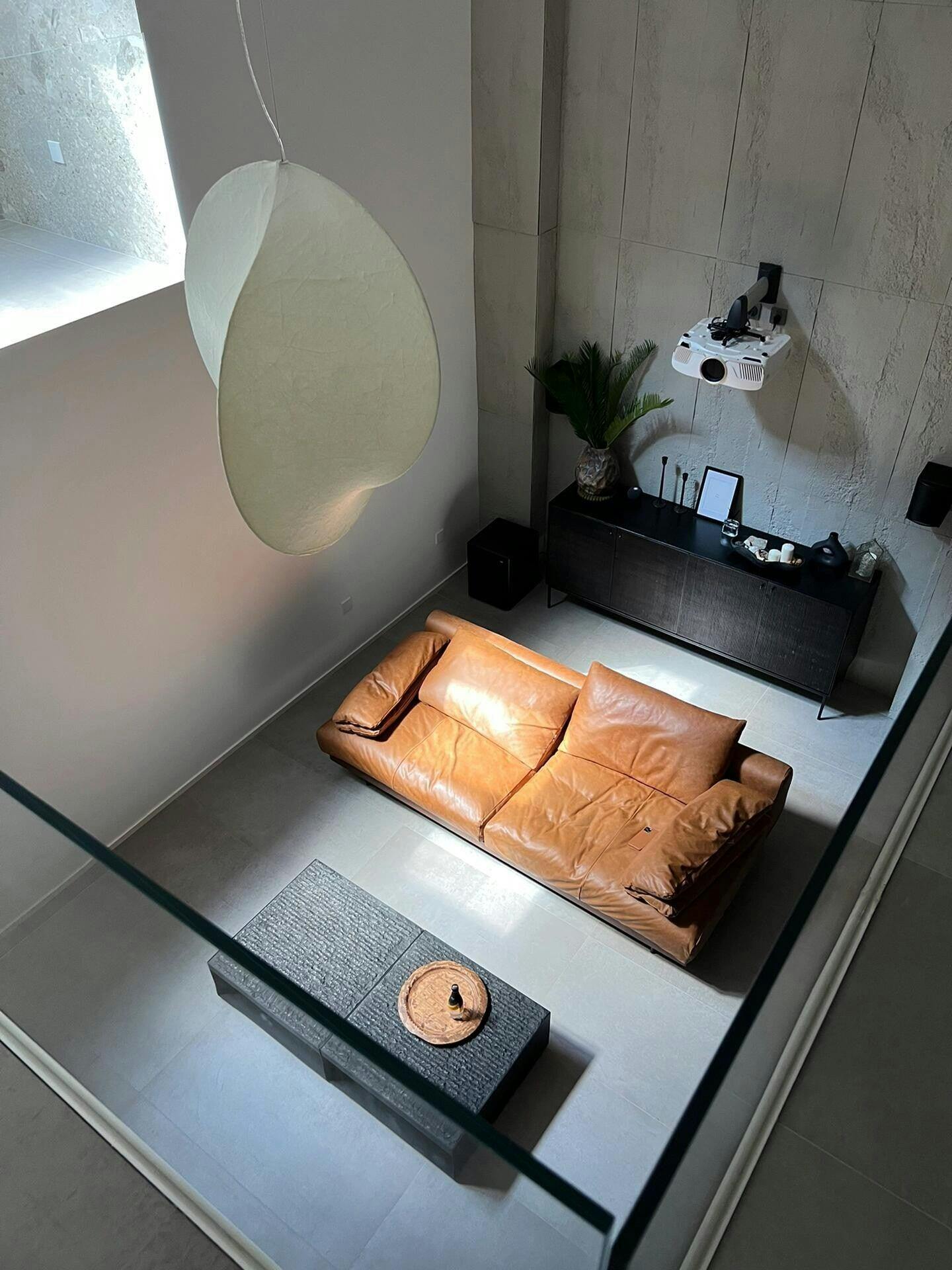

The Overlap Pendant Light epitomizes sleek, contemporary design, blending style with functionality in a captivating display. Crafted from a harmonious combination of steel and cocoon material, this pendant light radiates sophistication. Its internal structure features white powder-painted steel for durability and a crisp aesthetic. As a standout addition to any modern lighting collection, the Overlap Pendant Light bathes your space in soft, diffused light. The design features rings that appear to push through its cocoon membrane, intriguingly concealing their interlocking space and sparking the imagination. Illuminate your surroundings with this fixture and enjoy a perfect synthesis of form and function!

If you have any questions about our products, please get in touch with us and we will get back to you within 24 hours.

Product Size

Size: Dia 30cm x H 40cm / ∅ 11.8″ x H 15.7″

Size: Dia 50cm x H 65cm / ∅ 19.6″ x H 25.5″

Size: Dia 65cm x H 83cm / ∅ 25.5″ x H 32.6″

Size: Dia 80cm x H 98cm / ∅ 31.4″ x H 38.5″

Size: Dia 100cm x H 126cm / ∅ 39.3″ x H 49.6″

Details

Material: Metal, Carbon Steel, Imitation Silk.

Light source: LED bulb or Edison bulb.

Light source base type: E26 or E27.

Power: Max 40W.

Voltage: AC 110-240V.

Environment: Safety tested for use indoors and in dry locations that are not directly exposed to excessive moisture and water.

IP: IP20.

Wiring: Hardwired; professional installation recommended.

Control method: Compatible with common wall switches (not included).

Wire length: We provide 150cm / 59″ wires. Can be extended upon request.

Certification: UL, ETL, CE, SAA listed.

Installing Pendant Lighting Tips: A Complete Guide by Vinlighting

Pendant lights bring a modern and functional touch to any room, whether over a kitchen island, in a hallway, or above a dining table. At Vinlighting, we want to ensure you feel confident and prepared when installing your pendant lighting. Follow our detailed step-by-step guide, and soon, your pendant light will be beautifully illuminating your space.

Step 1: Prepare for Installation

To start, gather all the necessary tools to make your installation process smooth and safe:

Tools You’ll Need:

• Screwdriver
• Pliers
• Ladder
• Wire connectors
• Voltage tester
• Power drill (if necessary)

Safety First: Always turn off the power to the room at the breaker panel. Use a voltage tester on the existing fixture or wires to confirm there’s no power flow. If you’re replacing an old fixture, carefully unscrew and disconnect it. Keep any screws or mounting hardware that could be useful for the new installation.

Step 2: Assemble the Pendant Light

Next, lay out all parts of your pendant light and consult the manufacturer’s instructions, as assembly steps vary:

• Organize Components: Spread out all parts in front of you so you can easily see what goes where.
• Pre-Assemble Parts: Attach any rods, chains, or decorative elements as instructed, and set the pendant length (cord or chain) to your desired hanging height.
• Double-Check Details: Make sure any shades, crystals, or decorative pieces are aligned and securely fastened. Doing this work at ground level simplifies the installation process and helps you avoid last-minute adjustments on the ladder.

Step 3: Install the Mounting Bracket

The mounting bracket is crucial, as it supports the pendant light’s weight and ensures stability.

• Secure the Bracket: Attach the mounting bracket to the ceiling junction box with the screws provided. For heavier pendant lights, consider using stronger screws or adding support, such as a fan brace or ceiling beam.
• Check Stability: After securing, give the bracket a gentle tug to confirm it’s firmly attached. A stable bracket is essential for both safety and the fixture’s alignment.

Step 4: Connect the Wiring

Connecting the wires is the most technical part of installation, and proper wiring is essential for safety. Here’s how to do it:
Identify the Wires: Most pendant lights have three main wires:

• Black: Live or hot wire
• White: Neutral wire
• Green or Bare Copper: Ground wire

Wiring Instructions:

1. Connect the Ground Wire: Attach the green or bare copper wire from the pendant to the ceiling junction box’s ground wire. Use a wire connector to secure them together.
2. Connect the Neutral Wires: Twist the white wire from the pendant with the white wire from the ceiling. Secure with a wire connector to prevent slipping.
3. Connect the Live Wires: Twist the black wire from the pendant with the black wire from the ceiling, using a wire connector to ensure a snug fit.
4. Ensure Safe Connections: After connecting, check that each wire is tightly secured with a connector, and that no bare wires are exposed. For added safety, gently tug on each connection to verify they’re secure.

If wiring seems complicated, consulting a licensed electrician is a smart step to ensure proper, safe installation.

Step 5: Attach the Pendant Light

With the wiring complete, it’s time to secure your pendant light to the mounting bracket.

• Lift and Secure: Align the pendant light fixture with the mounting bracket, lifting it carefully into place. Use the provided screws or nuts to secure it tightly.
• Adjust Height and Alignment: Before fully tightening the fixture, check that it hangs at your desired height and is perfectly level. Making small adjustments now will prevent the need for re-positioning later.

Step 6: Install Light Bulbs and Finalize Connections

With the pendant light now securely attached, finish the setup with light bulbs and final checks:

• Insert the Bulbs: Use the recommended bulbs for your pendant light, ensuring they’re the correct wattage and type. Lower wattages provide a softer ambiance, while higher wattages offer brighter light for tasks.
• Attach Any Shades or Covers: If your pendant light includes shades or covers that weren’t attached earlier, install them now. This step adds the finishing touch to your fixture.
• Final Stability Check: Double-check that all parts are tightly fastened and that the fixture hangs level and steady. A quick stability check helps ensure long-term durability and safety.

Step 7: Test the Installation

Now for the moment of truth—testing your newly installed pendant light!

• Restore Power: Return to the breaker panel and switch the power back on.
• Flip the Switch: Turn on the wall switch to test your pendant light. If it illuminates properly and looks secure, you’ve successfully completed the installation!
• Final Adjustments: Take a step back and assess the pendant’s height and alignment. Make any final tweaks as needed to achieve the perfect look.

Additional Tips for Pendant Light Installation

Guidelines for Pendant Light Height:

• Above a Kitchen Island or Countertop: Hang the pendant 30-36 inches above the countertop to provide focused lighting without blocking the view.
• Over a Dining Table: Position the pendant light so that the bottom of the fixture sits 30-34 inches above the table. This height allows ample lighting while keeping the light source close to the dining area for ambiance.
• In Open Areas or Hallways: Maintain at least 7 feet of clearance from the floor to the bottom of the pendant light to ensure it’s out of the way, creating a spacious feel.

Weight Considerations:

• Support for Heavier Pendants: If your pendant light is heavier, make sure your ceiling junction box and mounting bracket can support its weight. For larger, heavier fixtures, you may need additional support such as a fan brace.

When to Call a Professional:

• For Electrical Safety: If you’re unsure about any aspect of wiring or installation, hiring a licensed electrician ensures your fixture is safely and properly installed.
• To Meet Building Codes: A professional can also confirm that your installation complies with local building codes and regulations, giving you peace of mind.

Choosing the Right Pendant Size and Height for Each Room

Selecting the perfect pendant size and height for each space ensures your lighting is functional and visually appealing:

• Kitchen Island: For a balanced look, hang pendant lights 30-36 inches above the counter. If you’re using multiple pendants, space them about 24-30 inches apart to create an evenly lit workspace.
• Dining Room: Choose a pendant size that’s approximately 1/2 to 2/3 the width of your dining table, and position it 30-34 inches above the table for optimal lighting and an elegant, intimate feel.
• Entryway or Hallway: In an open foyer or hallway, select a fixture that fits the scale of the space. Ensure it’s at least 7 feet from the floor to the bottom of the pendant to allow clearance.
• Living Room or Open Areas: Choose a pendant size that complements the room size and leaves ample clearance (at least 7 feet from the floor). For open spaces, consider using pendants in a cluster or at varying heights for visual interest.

Vinlighting hopes this guide has made your pendant light installation easy and enjoyable! Remember, pendant lights are more than just functional—they’re beautiful decor pieces that add warmth and style to any space. Browse Vin Lighting’s collection to find the perfect pendant lights for your home, and enjoy the exciting transformation they bring. Happy shopping!
